Specs for the Osmo quad charger power block
42 3 1-16 10:12
Uploading and Loding Picture ...(0/1)
o(^-^)o
radialuk
lvl.1
United Kingdom
Offline

Hi eveyrone,

Does anyone have the 57w power adapter (I think it's part 58) that goes with the Osmo battery quad charging system... or does anyone just know what the specs are?

My power adapeter has gone missing and I can't find a new one for sale. I figured I can get a universal one but I need to know the specs.... speciffically the voltage and ampage.

Thanks all.
1-16 10:12
Use props
DJI Gamora
Super Moderator

Offline

Hi, thank you for reaching out. Can you please send us a photo showing the parts that you are referring to for us to check if we have the available parts on our end? Please keep us posted. Thank you!
1-16 11:09
Use props
radialuk
lvl.1
United Kingdom
Offline

For sure.

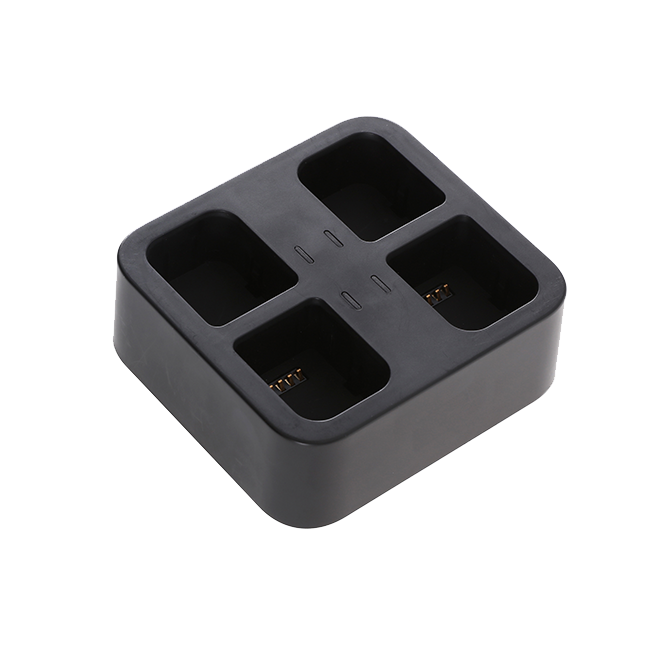

Heres a photo and the link to it on the DJI site.
https://store.dji.com/product/osmo-quad-charging-system-adapter-excluded


I have also just stumbled across this video https://www.youtube.com/watch?v=mDaiC1O14ho that suggests an inspire or phantom charge block will work, although that doesn't answer the question exactly.
Perhaps this will work https://www.amazon.co.uk/KFD-Charger-Phantom-battery-CP-PT-000377/dp/B07WP89RYQ at 17.5V and 5.7A
1-17 04:09
Use props
radialuk
lvl.1
United Kingdom
Offline

Good old YouTube... it just rolled onto another video, where, in the first frame it shows the box of the adapter that I need and helpfully the spec is printed right on the front!

The answer is .... 17.4V at 3.3A

1-17 04:12
